ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373310
FOR " COMMANDER " TRACK KIT / KAWASAKI BRUTE FORCE 750

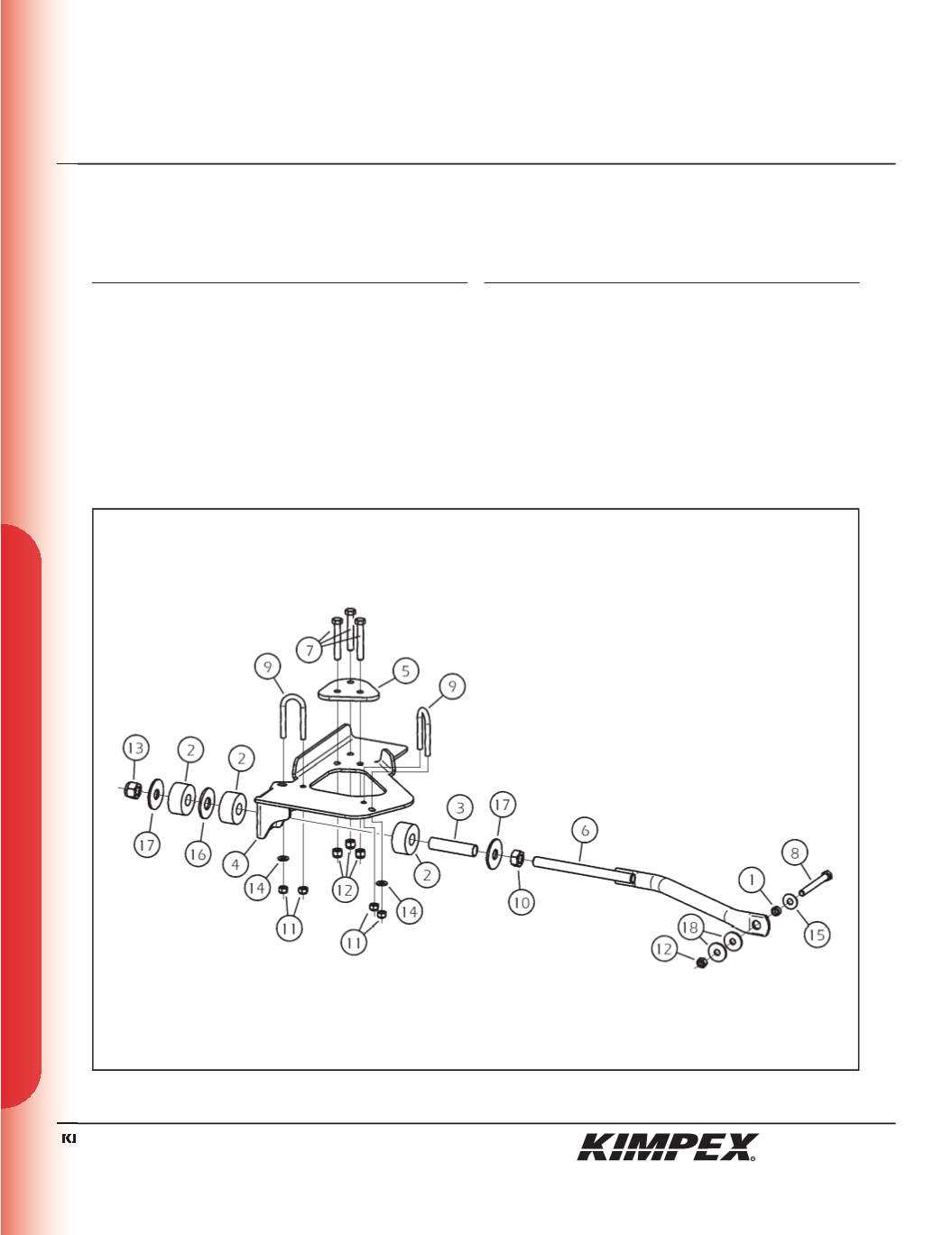

REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Tightening spacer
2510039-1-30-4000 2
2
Rubber bushing
2510039-1-30-6000 6
3
Bushing spacer tube
2510039-3-20-2000 2
4
Rear left A-arm bracket
2810150-4000
1
Rear right A-arm bracket
2810150-3000
1
5
Tightening plate
2810150-8000
2
6
Rear anti-rotation tube
2810153-20-1000 2
7
3/8” nc X 2-1/2” hex bolt
S1711-00620-052 6
8
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
9
5/16” nc X 2.188” U-bolt
S2215-D1635-002 4
10
5/8” nc nut
S4111-11000-022 2
Ref. Description
Item No.
Qty
11
5/16” nc self-locking nut
S4186-10500-022 8
12
3/8” nc self-locking nut
S4186-10600-022 8
13
5/8” nc self-locking nut
S4186-11000-022 2
14
5/16” dia flat washer
S4612-00500-002 4
15
3/8” dia flat washer
S4612-00600-002 2
16
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
17
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
18
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
