ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373221
FOR " COMMANDER " TRACK KIT / KYMCO 500
SNOWPLOW ADAPTER INSTALLATION
(see sketch E)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation. If not properly
secured/supported, serious physical injury could occur.
1)
Fasten the two hooks (#
A
) onto the snowplow adapter (#
B
)
using six
5/16” nc X 3/4”
carriage bolts (#
C
) and six
5/16” nc
self-
locking nuts (#
D
) (included in the snowplow adapter kit no.
073297) as illustrated.
(see sketch F)
2)
Fasten the
(2)
rear anti-rotation arm supports (#
5
) onto the
snowplow adapter (#
B
) using the
(2)
rear anti-rotation arm
support spacers (#
4
),
(4) 3/8” nc X 1-1/4”
carriage bolts (#
11
),
(4) 3/8” nc
self-locking nuts (#
18
),
(2) 5/16” nc X 1”
carriage bolts
(#
14
), and
(2) 5/16” nc
thin self-locking nuts (#
17
).
NOTE :
Refer to the snowplow adapter mounting
instructions (no. 073297) to finish the installation.
14
11
4
5
18
17
B
D
A
C
B

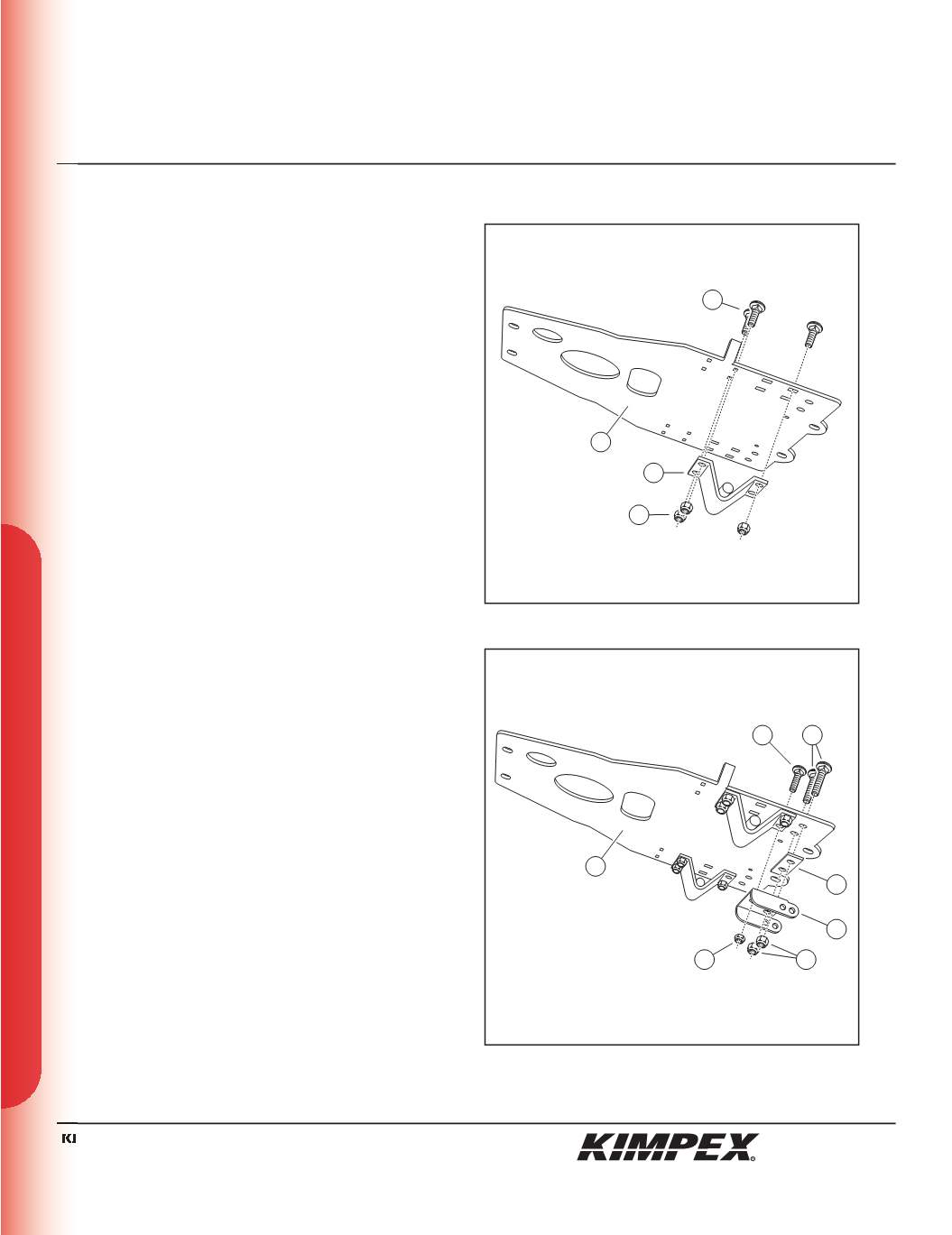

sketch E
sketch F
