ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373413
For "Commander" track kit / Polaris Sportsman X2
MAIN AXLE ADAPTER INSTALLATION
(see sketch H)
1)
Remove and discard only one bolt retaining the
sprocket to the main axle of the Track Kit.
NOTE :
Pay special attention to the orientat-
ion given to the main axle adapter (#5)
during installation. The lip, of the main axle
adapter, must fit perfectly the circumference
of the main axle.
2)
Position the main axle adapter (#
5
) and fasten
using the
3/8” nc X 2-1/4”
Allen socket machine
screw (#
4
). Torque to 20 ft-lbs.
3)
Install the Track Kit onto the hub of the ATV using
the
(4) 3/8” nc
“T” nuts (#
3
). Torque to 25 ft-lbs.
NOTE :
Recheck torque of the “T” nuts (#3)
after one hour of use.
4)
Repeat
steps 1
to
3
for the opposite side.

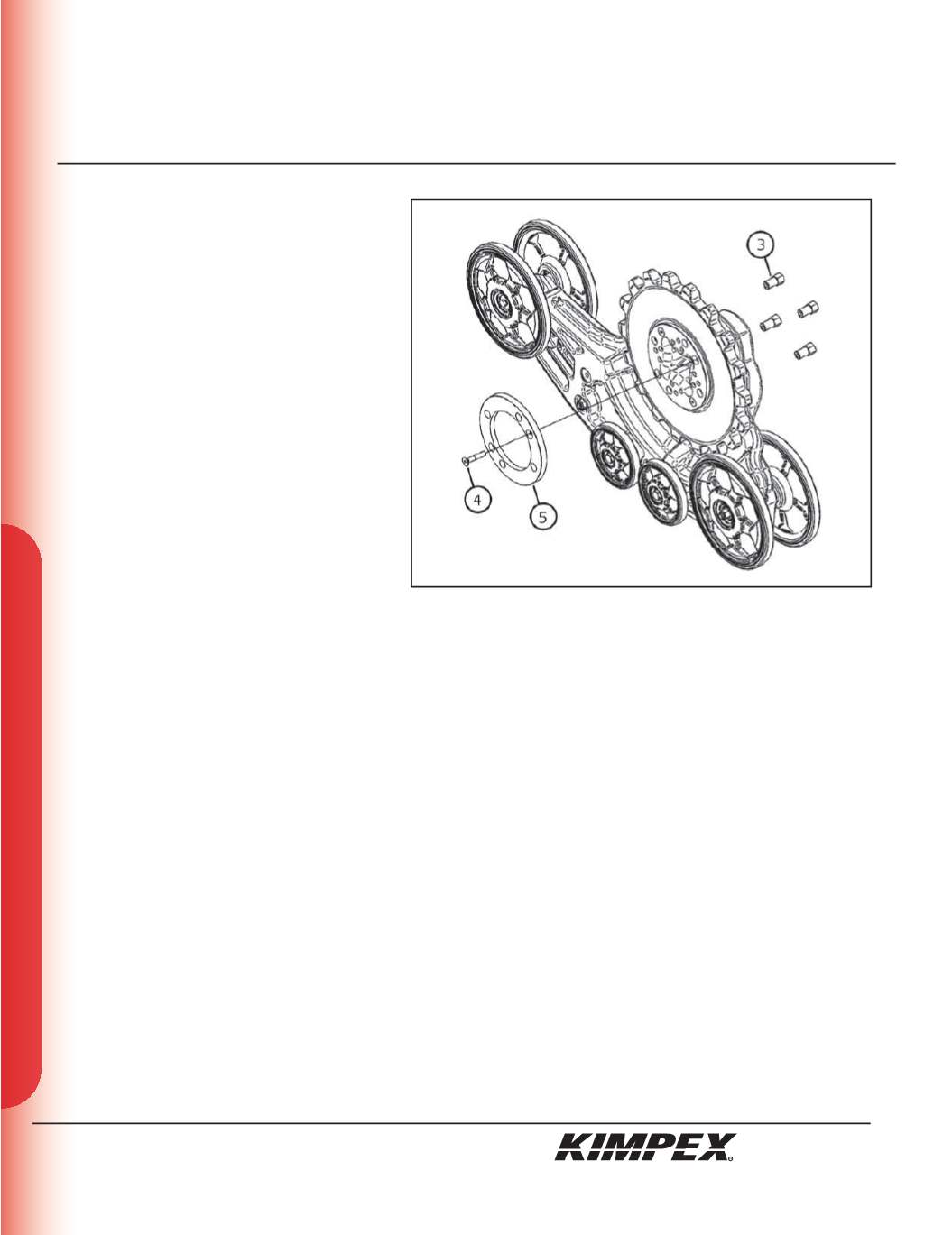

sketch H
