ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373410
FOR " COMMANDER " TRACK KIT / POLARIS SPORTSMAN

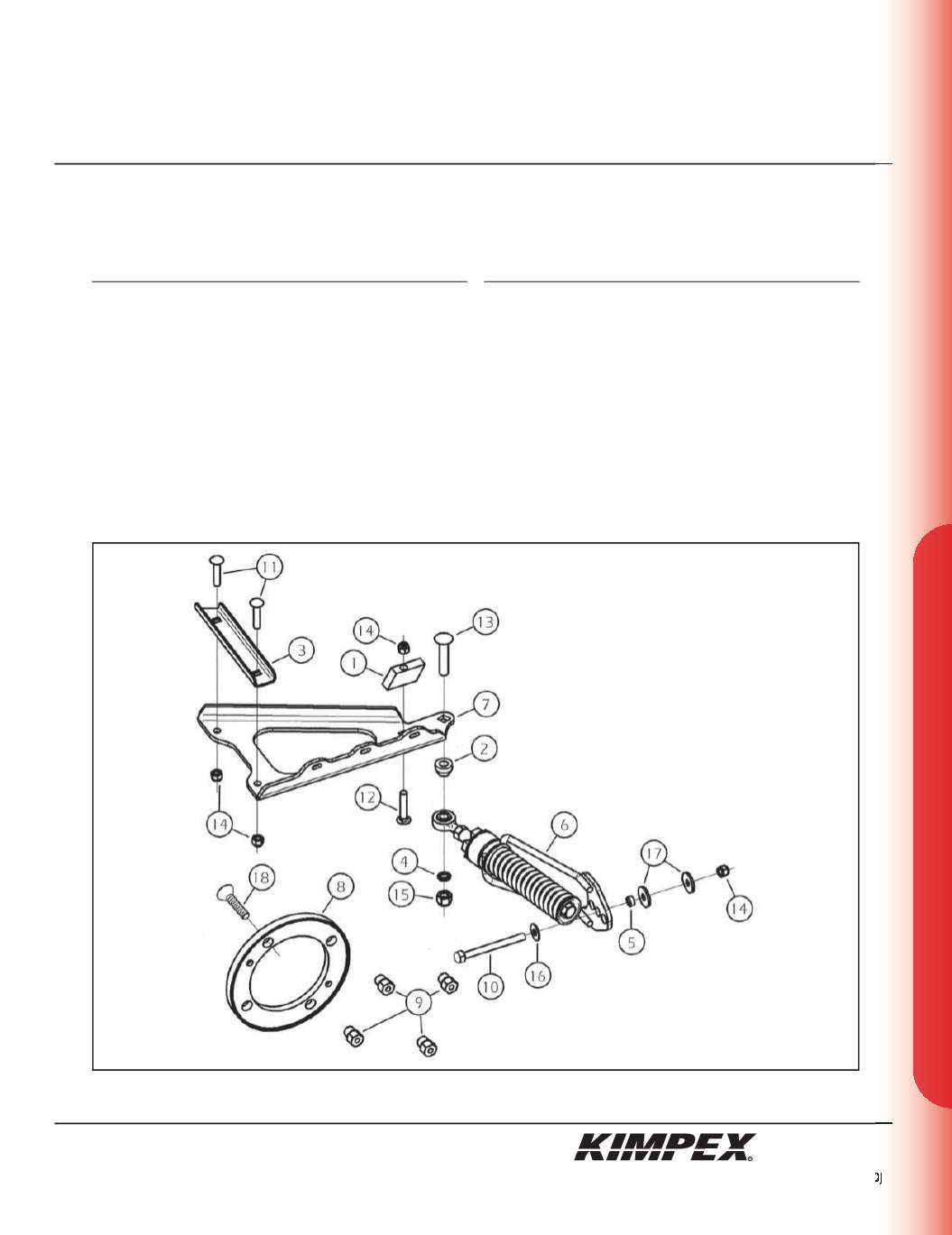

FRONT LEFT AND RIGHT SUB-TABLE
Ref. Description
Item No.
Qty
1
Clamping block
2510039-1-20-1000 2
2
Large ball joint spacer
2510039-1-20-2000 2
3
Front left sub-table clamping plate 2510039-2-20-2000 1
Front right sub-table clamping plate 2510039-1-20-3000 1
4
Short ball joint spacer
2510039-1-20-4000 2
5
Tightening spacer
2510039-1-30-4000 2
6
Front anti-rotation assembly
2810153-10
2
7
Front left sub-table plate
2810153-2000
1
Front right sub-table plate
2810153-1000
1
8
Main axle adapter
2810153-5000
2
9
3/8” nc “T” nut
2810153-9000
8
Ref. Description
Item No.
Qty
10
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
11
3/8” nc X 1-3/4” carriage bolt
S2412-0E028-0A2
4
12
3/8” nc X 2” carriage bolt
S2412-0E032-0A2
2
13
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
14
3/8” nc self-locking nut
S4186-10600-022 8
15
1/2” nc self-locking nut
S4186-10800-022 2
16
3/8” dia flat washer
S4612-00600-002 2
17
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
18
3/8” nc X 2-1/4”
Allen socket machine screw S3161-B0D36-000 2
