ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373314
FOR " COMMANDER " TRACK KIT / KAWASAKI BRUTE FORCE, KVF 700

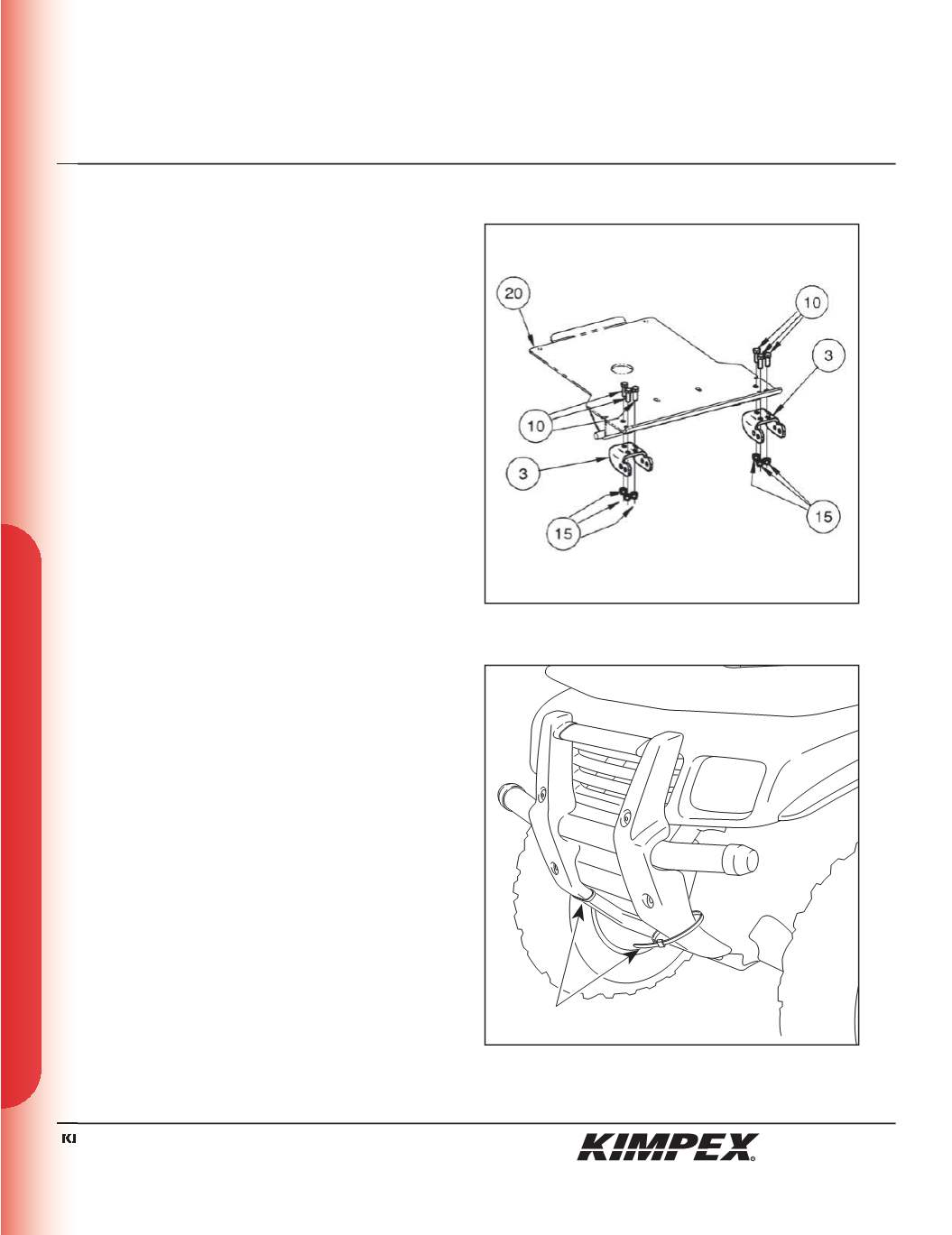

SNOWPLOW ADAPTER INSTALLATION
(see sketch F)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation. If not properly
secured/supported, serious physical injury could occur.
1)
Fasten the
(2)
rear anti-rotation arm supports (#
3
) onto the
snowplow adapter (#
20
) using
(6) 3/8” nc X 1”
hex bolts (#
10
) and
(6) 3/8” nc
self-locking nuts (#
15
).
NOTE :
Refer to the snowplow adapter mounting
instructions (no. 073341) to finish the installation.
ATTENTION : FOR KVF 700 MODEL ONLY
(see sketch G)
To allow front Track Kit to move freely, attach the lower
part of the front plastic protector of the ATV using two
tie downs as illustrated.
sketch F
sketch G
TIE DOWNS
