MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373213
FOR " COMMANDER " TRACK KIT / HONDA RINCON 650, 680
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Front left A-arm bracket
2810191-2000
1
Front right A-arm bracket
2810191-1000
1
2
3/8” nc self-locking nut
S4186-10600-022 10
3
Short ball joint spacer
2510039-1-20-4000 2
4
Large ball joint spacer
2510039-1-20-2000 2
5
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
6
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
Ref. Description
Item No.
Qty
7
3/8” dia flat washer
S4612-00600-002 10
8
1/2” nc self-locking nut
S4186-10800-022 2
9
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
10
Tightening spacer
2510039-1-30-4000 2
11
Front anti-rotation assembly
2810153-10
2
12
Front A-arm clamping plate
2810191-5000
2
13
3/8” nc X 2-1/4” hex bolt
S1711-00618-052 4
14
3/8” nc X 2-3/4” hex bolt
S1711-00622-052 4

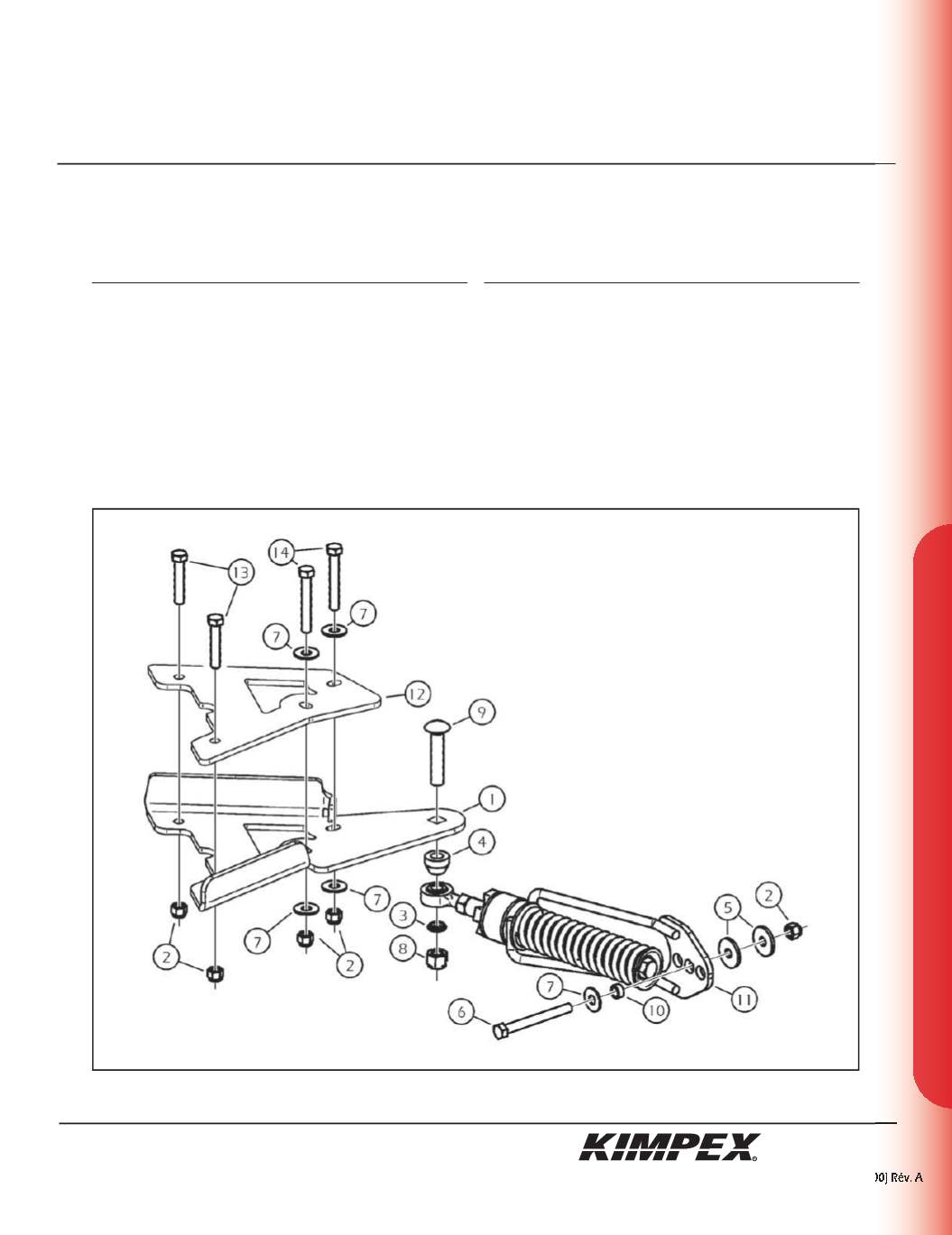

sketch A
ATV
